1 103 400 251 374 - - -

Circulating oil pump body

-

2 GRN 55499 - - -

Nut Ø 14x11,5x34 between body and cover

-

3 103 402 451 377 - - -

Oil pump driven gear

-

4 GRN 49454 - - -

Wheat 10x8

-

5 PN 53067 - - -

Stud 8x1,25x38 on the oil pump body on the grub screw side

-

6 103 402 251 376 - - -

Oil pump drive gear

-

7 PN 45843 - - -

Stud 8x1,25x38 on the cover grease dowel

-

8 RNT 47075 - - -

Flat washer for alternator fixing

-

9 DN 53397 - - -

Nut 8x1,25

-

10 103 401 252 842 - - -

Circulating oil pump cover

-

11 101 420 453 268 - - -

Cartridge gasket

-

12 GOM 55510 - - -

Grommet 25x28 on shaft for gaskets

-

13 101/9 4067 53269 - - -

Spring guide ring

-

14 101/9 4214 53267 - - -

Internal exchanger spring

-

15 GOM 54376 - - -

Grommet Ø 78,97x86,03 on exchanger body

-

16 101/9 4070 54375 - - -

Lower heat exchanger cover

-

17 GOM 45899 - - -

Rubber 30x36 seal between tie rod and cover

-

18 101/9 4063 53266 - - -

Exchanger holder shaft

-

19 250 F 4212 42874 - - -

Oil filter cartridge

-

20 107 ML 57498 - - -

Oil dipstick

-

22 107 ML 57497 - - -

Oil dipstick tube

-

23 107 ML 54801 - - -

Oil pressure transmitter

-

24 107 MB 58386 - - -

Complete sleeve fitting for vapor discharge

-

25 MN 57698 - - -

Manchon 10 x 16 x 160 pour évacuation des condensats du vasc.

-

26 GN 47207 - - -

Gasket 12x18x1

-

27 107 ML 54811 - - -

Oil temperature probe on the right-hand drive cover

-

28 Seeger 58236 - - -

Circlip for oil dipstick

-

29 101/3 4134 49983 - - -

Bolt for pressure adjustment spring

-

30 GN 45892 - - -

Gasket

-

31 107 ML 57096 - - -

Bush for oil pressure regulating valve

-

32 101/3 4124 49507 - - -

Spring for oil pressure regulating valve

-

33 107 ML 57097 - - -

Oil pressure regulation valve

-

34 101/3 4033 49510 - - -

Washer for valve stop

-

35 101/4 4080 49444 - - -

Body for oil filter

-

36 101/4 4201 51149 - - - new

Gasket for oil filter body

$10.63

37 GOM 42693 - - -

Grommet 28x34x3 on oil filter body

-

38 GOM 42866 - - -

Grommet 22x28x3

-

39 107 ML 54772 - - -

Pipe for oil suction filter from the sump

-

40 DNT 47047 - - -

Nut 6x1x5

-

41 RDI 53899 - - -

Toothed washer 6x10

-

42 PN 56475 - - -

6x1x27 stud for fixing oil suction pipe flange from sump

-

43 GOM 54022 - - -

Intermediate Gear Shoulder Rubber 34.59 x 39.7 x 2.65

-

44 GN 55099 - - -

Gasket 26 x 44 x 1 seal between oil pump cover and crankcase and fringe for oil level dipstick

-

45 GOM 45453 - - -

Grommet 78x85 on oil filter body

-

46 101/7 ML 54546 - - -

Spring for safety valve in the filter

-

47 250 F 4206 42910 - - -

Guide for valve ball on the oil filter body

-

48 250 F 9082 42391 - - -

Ball for bush on the oil filter body

-

49 250 F 4210 42909 - - -

Bush for valve on the oil filter body

-

50 107 ML 55172 - - -

Torrel heat exchanger

-

51 GOM 50315 - - - new

78 x 1.2 CYLINDER LINER ORING

$3.54

52 GN 49982 - - -

Gasket 26x33 for valve bushing

-

53 107 MT 55456 - - -

Oil dipstick tube support column

-

54 RSN 32635 - - -

Split washer for alternator mounting

-

55 BN 47018 - - -

Bolt 8x1.25

-

56 CCN 57427 - - -

Cable lug on the oil pressure head

-

Consignment

Consignment

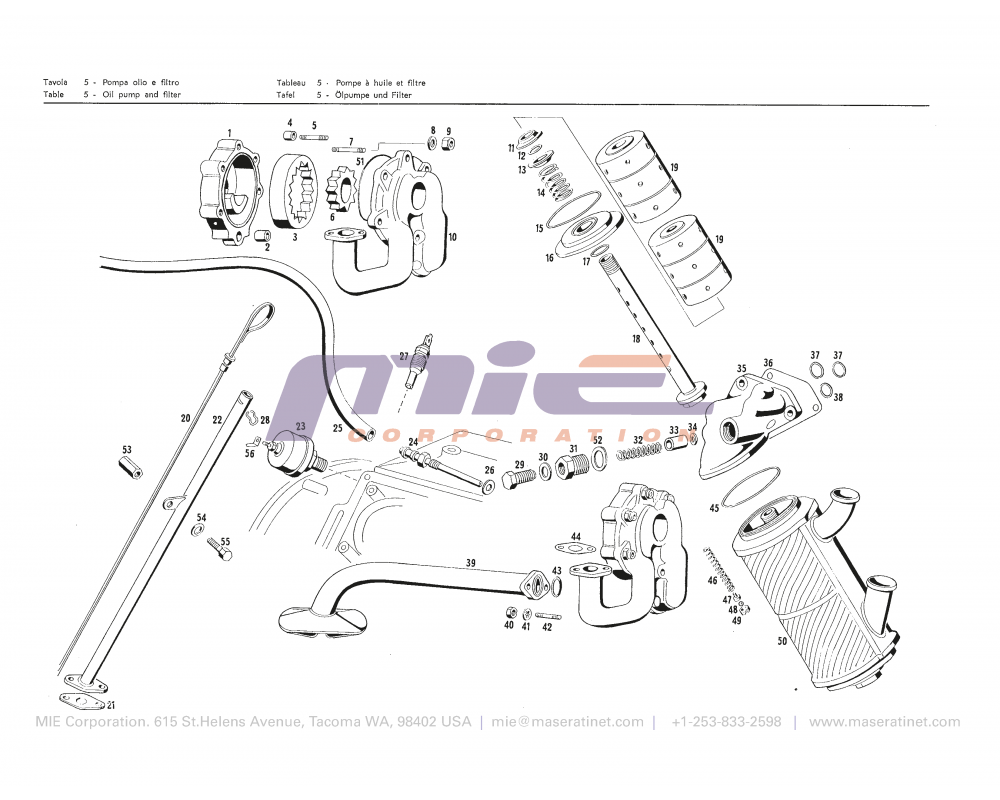

Maserati / Quattroporte I / T-05 - oil pump and filter
