1 312020008 - - -

Intake manifold

$383.37

1 312020007 - - -

Intake manifold

-

2 312220301 - - - new

PLENUM CHAMBER GASKET

$25.87

4 108006025 - - -

Screw

$0.54

5 108006055 - - -

Screw

$1.55

5 312220323 - - -

Screw

-

6 312220005 - - -

Carburetor cover

-

7 312020315 - - -

Sleeve

-

8 186403052 - - -

Clamp to fix. lower sleeve

-

9 312020319 - - -

left air pipe -

$95.87

10 312020320 - - -

right air pipe

$96.79

11 312020316 - - -

Sleeve

-

11 312020318 - - - new

TURBO PRESSURE HOSE

$41.23

12 108008025 - - - new

Screw

$0.56

13 138410080 - - -

Spring washer (Not supplied)

$0.40

14 312020329 - - - new

(NLA) GASKET (SEE -0Z)

$25.00

14 312020323 - - -

Gasket

-

15 312020326 - - -

Right exhaust manifold

$315.98

16 312020325 - - -

Left exhaust manifold

$309.01

17 312020314 - - -

Carburator stud

-

17 312020313 - - -

Carburator stud

$2.10

18 312020317 - - -

Nut

$3.07

19 135910084 - - -

Washer

-

20 43733 - - - new

MOUNTING THREADED STUD 8 X 30mm

$2.44

21 312020309 - - -

Nut

-

22 135100084 - - -

Washer

-

23 312020373 - - -

Clamp to fix. sleeve on the manifold (312020111 alternatives)

-

23 312020111 - - -

Clamp

-

24 312020361 - - -

Sleeve for conn. Y-conn. vacuum (UP TO no 3000 engine)

-

24 312020333 - - -

Cacuum pipe from Y-conn. to tank (UP TO no 3000 engine)

-

25 312020335 - - -

Vacuum pipe from Y-conn. to sleeve (UP TO no 3000 engine)

$24.54

26 312020337 - - -

Y-connector

$8.67

27 312020336 - - -

Y-connector

$3.43

28 313620304 - - -

Sleeve

$16.77

29 313620303 - - -

Two way-cu∏nector

$3.35

30 312020324 - - -

Connector on intake manifold

$6.32

31 65010100 - - -

Wire inlet

-

32 312020330 - - -

Delivery pipe from Y-conn. to intake man.

-

32 312020347 - - -

SMALL COOLANT HOSE

$34.56

33 312020331 - - -

Return pipe from manif. to Y-conn.

-

33 312020348 - - - new

331/10/26 HOSE (NLA)

$24.37

34 315520169 - - - new

MASERATI BITURBO NOS ONE WAY VALVE

$140.00

35 312020332 - - - new

331/11-2/21 VAC. HOSE 30cm

$29.99

36 312020345 - - -

Vacuum sleeve (UP TO no 3000 engine)

-

37 312020112 - - -

Clamp to fix. lower sleeve on the pipe (186404060 alter.)

$4.55

37 312420106 - - -

Clamp

$6.27

37 312420105 - - - new

HOSE CLAMP - HOSE CLIP

$4.58

37 186404060 - - -

Clamp (312420105 - 312020112 alternatives)

-

38 1312020400 - - -

Clamp to fix. water sleeve on Y-conn.

-

38 319220111 - - -

Clamp (alternatives)

-

39 312020358 - - -

Intake manifold cover

$65.00

40 312020359 - - -

Rubber ring

-

40 312020411 - - -

Rubber ring

$3.67

41 108006014 - - -

Screw

$1.23

41 101206014 - - -

Bolt

-

42 RN 45679 - - - new

Spring washer

$0.09

42 312220411 - - -

Washer

$3.07

43 317420323 - - -

Sleeve

-

44 312020351 - - -

Eye connector

-

44 312020110 - - -

Clamp to fix. water pipe under manifold

-

Consignment

Consignment

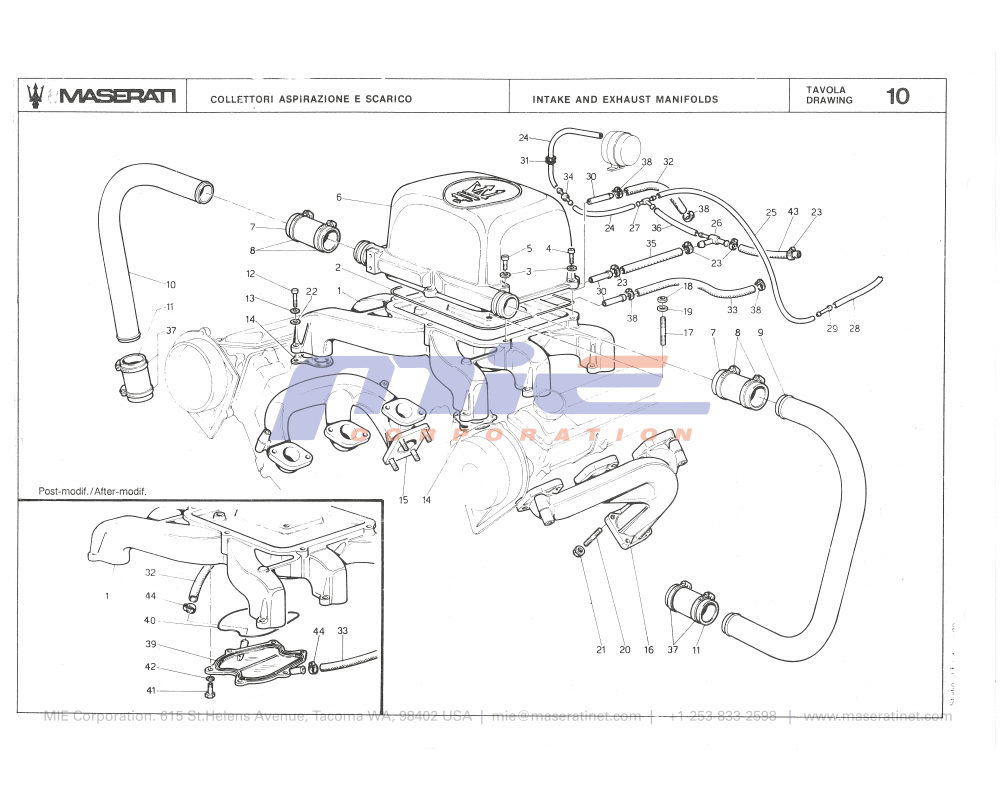

Maserati / Biturbo 2000 / T-10 - intake and exhaust manifolds
